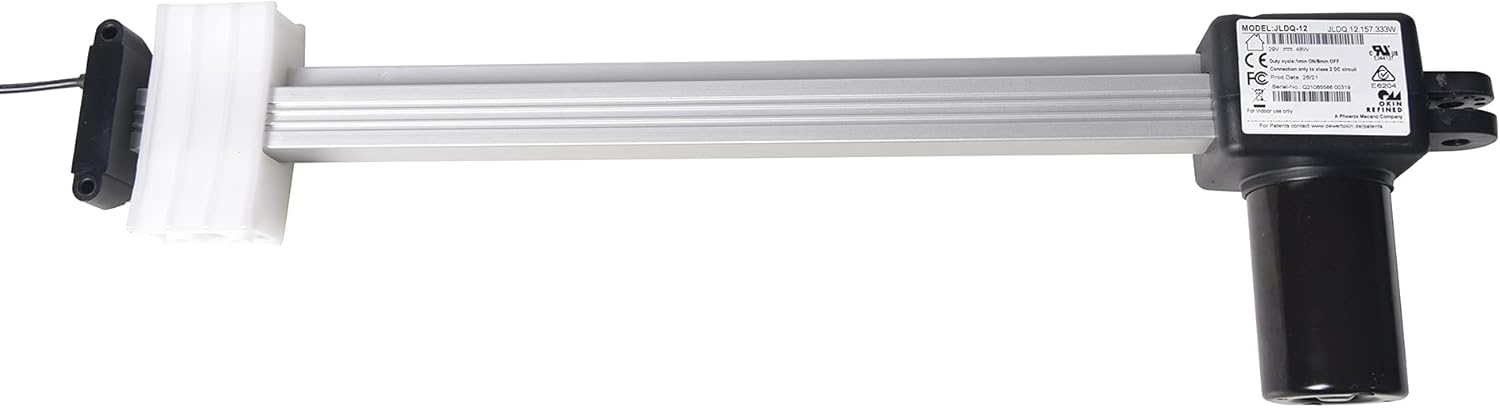

Okin Model JLDQ-12 & JLDQ.12.157.333W Power Recliner Motor Lift Chair Actuator Replacement
Product details
| Management number | 221210894 | Release Date | 2026/05/03 | List Price | $32.00 | Model Number | 221210894 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Okin Refined-R Model: JLDQ 12.157.333W Recliner Motor. This is original Okin JLDQ motor Technical data: Load: Push force:650N, Pull force:650N Stroke: 333 mm, move with slide block Operation frequency: On 1 min/Off 8min Speed: 29VDC SMPS, 8sec without load This motor part is only suggested to replace OKIN model JLDQ.12.157.333W, please check your motor brand and model first.
- APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs. This motor part is only suggested to replace OKIN model JLDQ.12.157.333W, please check your motor brand and model first.
- DESCRIPTION: The actuator motor set is made of 1 motor and 4 connectors, connector with 7-pin round plug is for switch hand control, connector with 2-pin square plug and clip is for power supply, 2 connectors with 2-pin socket is for slaved motors.
- SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 333mm ; Minimum Inst Size (shrink): 157 mm; Maximum Inst Size: 490 mm; Load: push force: 650N, pull force: 650N.
- NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
- PACKAGE: 1* Okin refined motor. Easy to install.
| Size | JLDQ.12.157.333W |
|---|---|
| Color | Black |
| Shape | Rectangular |
| Pattern | Solid |
| Tilting | No |
| Set Name | 1 |
| Arm Style | Armless |
| Leg Style | sled base |
| Back Style | Solid Back |
| Brand Name | Okin |
| Item Depth | 157 mm |
| Model Name | JLDQ.12.157.333W |
| Style Name | Contemporary |
| Unit Count | 1.0 Count |
| Fabric Type | Aluminum |
| Form Factor | Recliner |
| Finish Types | Anodized |
| Manufacturer | OKIN Refined Electric Technology Co.,Ltd |
| Model Number | JLDQ.12.157.333W |
| Fill Material | Foam |
| Material Type | Aluminum |
| Seat Material | Foam |
| Is Customizable | No |
| Item Dimensions | 17.7 x 4 x 3 inches |
| Furniture Finish | Oak |
| Required Assembly | Yes |
| Additional Features | power_recliner |
| Frame Material Type | Aluminum |
| Included Components | Okin Refined Motor |
| Indoor Outdoor Usage | Indoor |
| Age Range Description | Adult |
| Surface Recommendation | Hard Floor |
| Manufacturer Part Number | JLDQ.12.157.333W |
| Reclining Position Count | [MORE THAN 2] |
| Product Care Instructions | Wipe Clean |
| Recommended Uses For Product | Recliner Function for OKIN JLDQ.12.157.333W Chairs |
| Maximum Weight Recommendation | 650 Pounds |
| Assembly Instructions Description | Assembly required. Follow the instructions provided. |
