OBD2 Breakout Box Powerful OBDII Protocol Detector Communication/Power/Ground Detection Breakout Box 16-Pin CAN Breakout Box Automotive with OBD2 Scanner Connector, 4mm Banana Jack, 35-inch Cable
Product details
| Management number | 231803594 | Release Date | 2026/06/18 | List Price | $10.40 | Model Number | 231803594 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

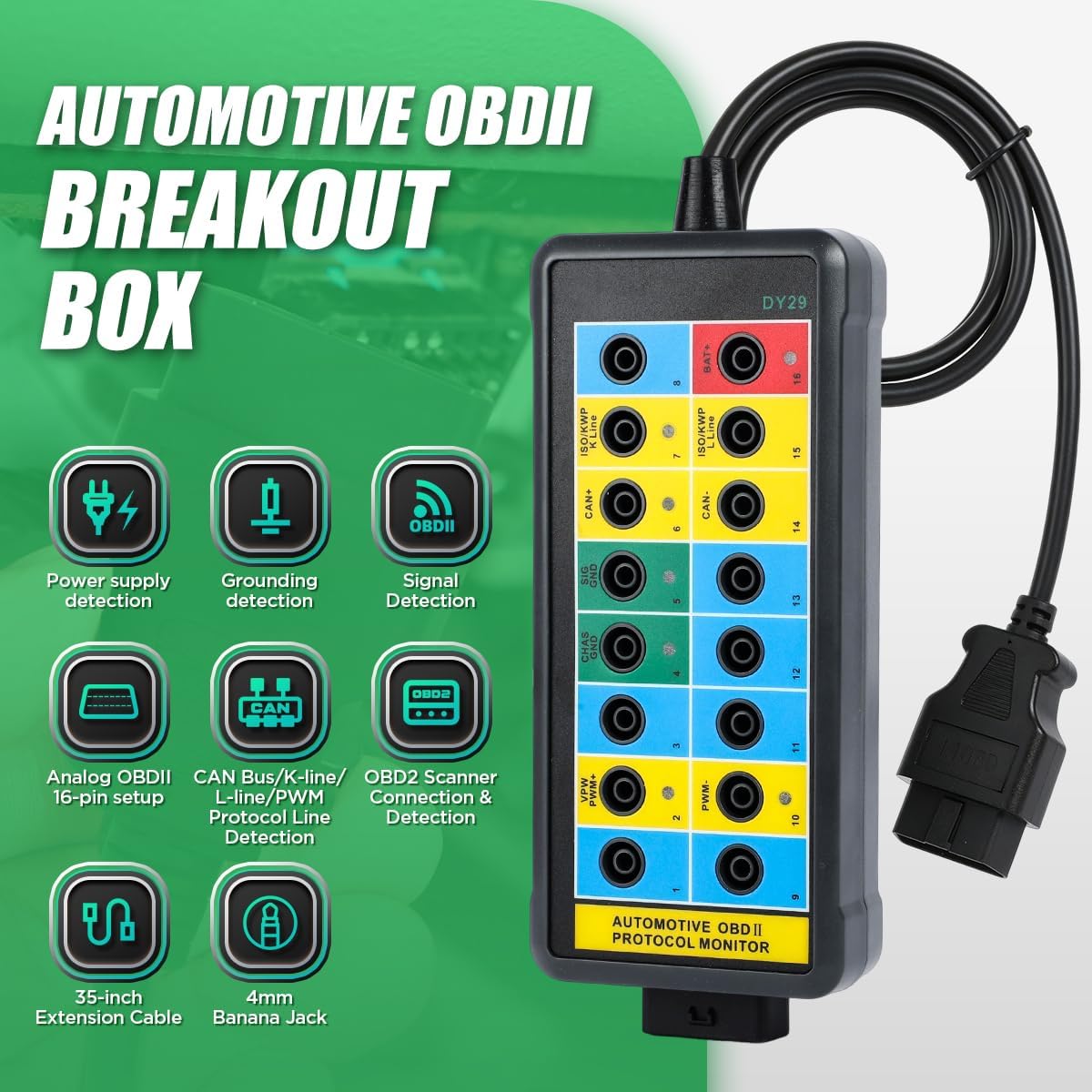

- 【Powerful OBD2 Breakout Box】This is an automotive diagnostic tool for the OBDII diagnostic link connector which offers easy access to the OBDII connector for monitoring signals of protocol, power, and grounds conveniently and safely after connecting the car OBDII system. OBDII protocol detector can be also connected to multi-meter or oscilloscope for further testing once unconfirmed signals detected. OBDII breakout box is perfect for diagnosing and modifying your cars or trucks.
- 【OBD2 Communication/Signal&Power Supply & Grounding Detection】Through different color LED lights on breakout box, you can quickly judge whether communication, power supply and grounding of OBDII interface on vehicle are normal. Yellow LED lights on indicate that OBD2 scanner is communicating with vehicle and the corresponding 2/6/7/10/14/15 pins have signal waveforms. When vehicle body is properly grounded, Green LED of pin 4 and 5 are on. When power supply is normal, Red LED of pin 16 is on.
- 【CAN Bus/K-line/L-line/PWM Protocol Line Detection OBD2 Protocol Detector】OBD2 breakout box not only can detect car signal but also can detect some of diesel signal such as K-line, L-line, CAN bus and PWM protocol line. It is easier to measure CAN bus signals by placing a junction box between the breakout box and the vehicle.

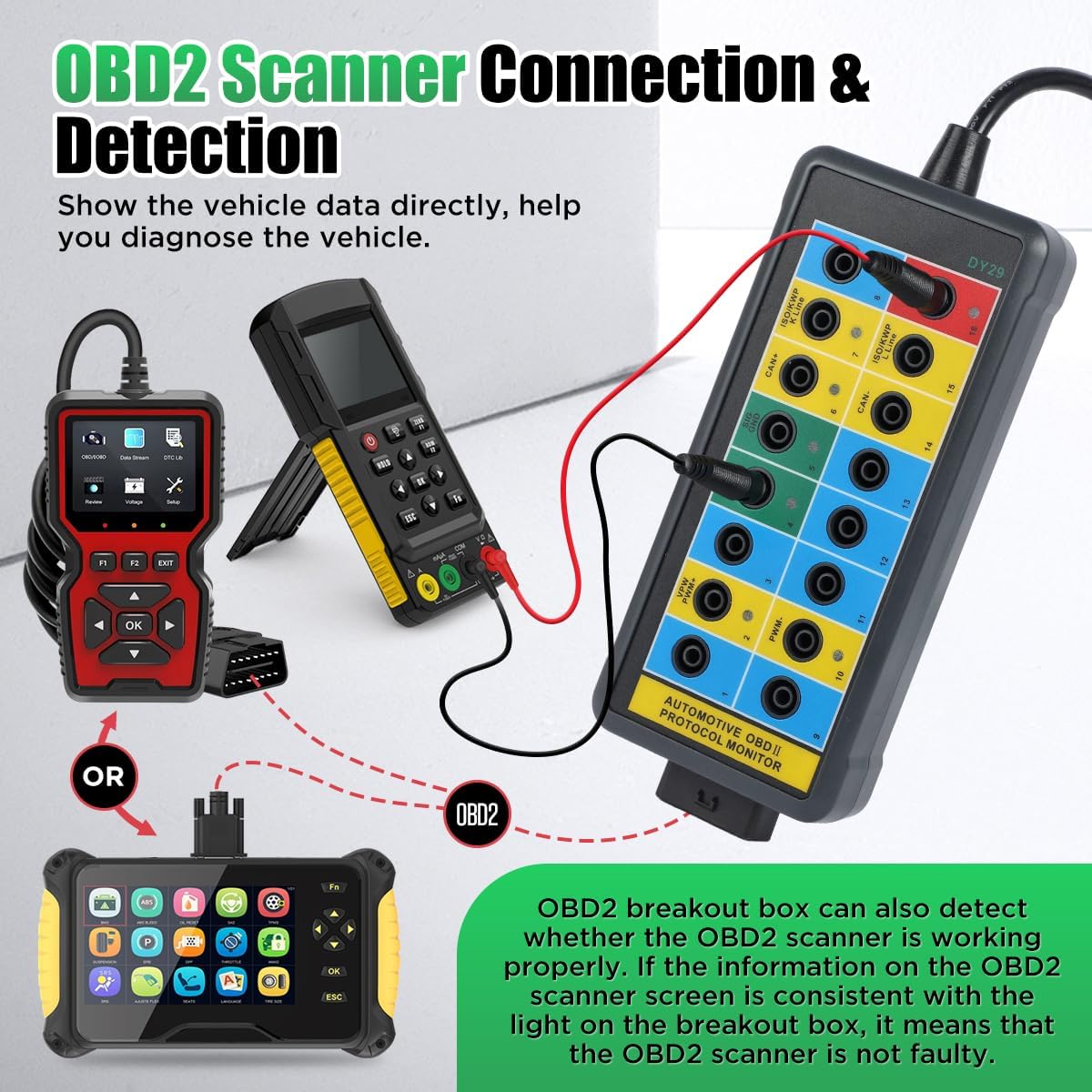

- 【OBD2 Scanner Detection & 4mm Banana Jack OBD2 Breakout Box】When you connect the OBD2 scanner, if the information on the OBD2 scanner screen is consistent with the light on the breakout box, it means that the OBD2 scanner is not faulty. The built-in input jack of the OBDII protocol detector can be connected to any type of 4mm banana plug. You can connect a multimeter or an oscilloscope to the banana jack to detect the detailed signal information of the corresponding lighted port.
- 【OBDII 16 Pins Design & 35-inch Extension Cable of Breakout Box Automotive】The input jack layout of OBD2 protocol detector fully simulates the 16-pin layout of the OBDII interface,allowing more tests to be performed quickly and intuitively. When the OBD2 scanner communicates with vehicles, all 16 pins of OBDII breakout box can be easily connected. No need to directly operate the pins of the OBDII interface. OBD2 breakout box has female connector and male connector with a 35-inch extension cable.
- 【Warmly Note】Do not jumper pins together without understanding the circuits. Do not use the tool to power up a load device exceeding 1 amp. Do not place a jumper between the power pin 16 and ground pins 4, 5. When the breakout box automotive is engaged, the yellow LEDs will flash when changes take place on the corresponding data line. The flashing LEDs will allow you to determine the activity on that line. The green and red LEDs corresponding to OBDII connector pin 4, 5 and 16 are always active.
- 【3-Year Product Service】We aim at trying our best to offer you the best product and services to make you unworried before/after the purchase. We promise 3-year product service. If you have any questions or doubts, our professional technical team will help you solve the problem within 24 hours.
| UPC | 728990658352 |
|---|---|
| ASIN | B0B2WTB85F |
| Brand Name | KAISAL |
| Item Weight | 13.6 ounces |
| Screen Size | 1.28 Inches |
| Manufacturer | KAISAL |
| Model Number | KC29 |
| Power Source | Battery Powered |
| Operating System | 1 |
| Automotive Fit Type | Universal Fit |
| Included Components | adapters |
| Manufacturer Part Number | KC29 |
| Manufacturer Warranty Description | 3 Years |
