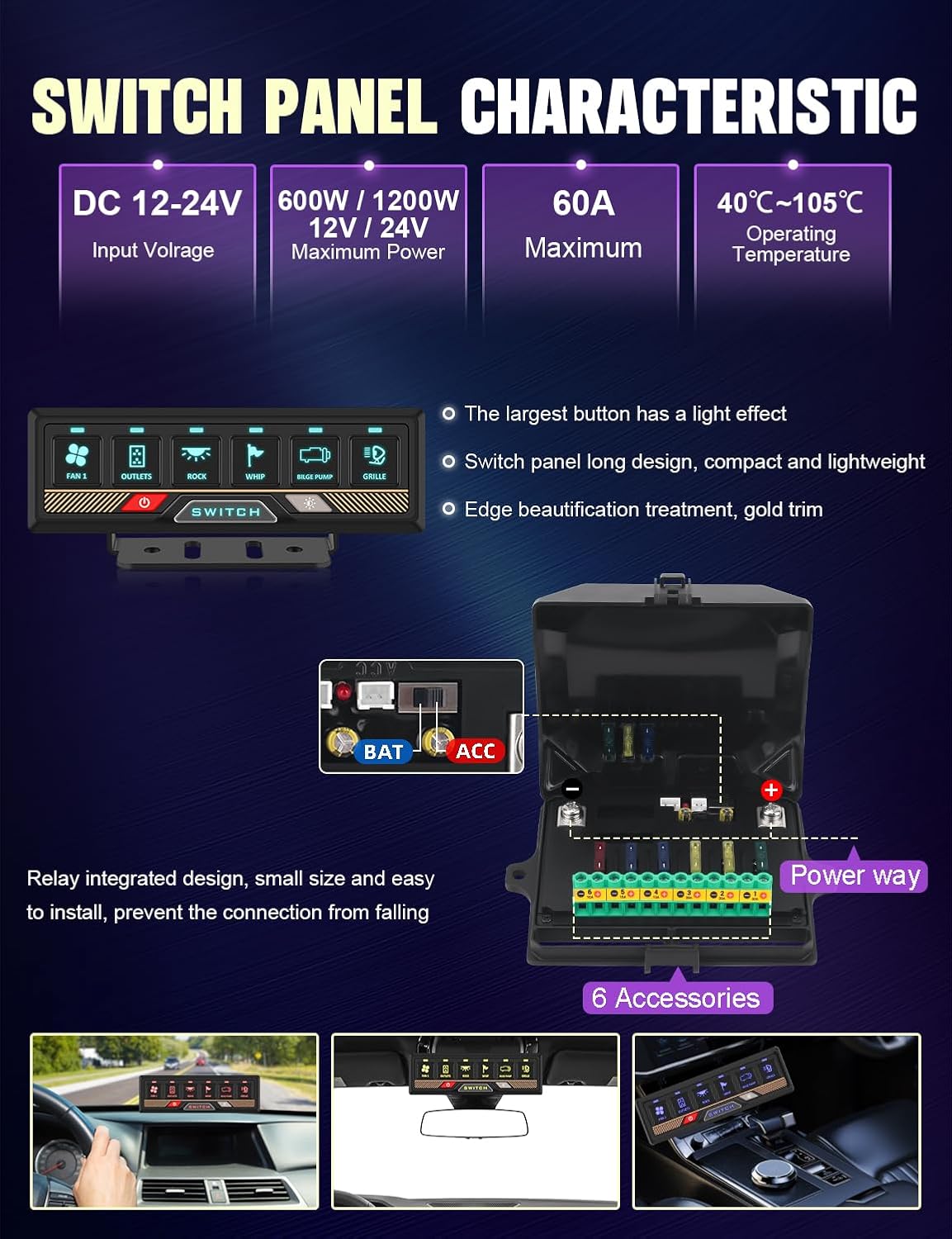

Chelhead Bluetooth Switch Panel 12V Universal 6 Gang Switch Box, Works with Android Auto & App, RGB Keypad, Programmable Modes for Led Pods Whip Lights Electronic Accessories for UTV Trucks
Product details
| Management number | 229953788 | Release Date | 2026/05/31 | List Price | $46.40 | Model Number | 229953788 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Slim Switch Panel Design: 6 Gang switch panel adopts slim bar deisgn, take less space, control more acessories.Easily group multiple light wires into a single channel for streamlined control, reducing clutter and messy wiring
- Remote APP and Panel Control: There are 2 ways of controlling for 12V switch panel, control with the switch panel & Bluetooth-controlled Mgroup Light app. Both methods work in sync.
- Switch Panel RGB Can Be Programmed with These Options: On/Off or Momentary, RGB backlighting, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of backlighting
- Premium Material: Aluminum Panel+Superior ABS & PC Switch, it has superior physical properties, outstanding temperature resistance and electrical properties, strong flame retardant and is not easy to catch fire or damage.
- Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
- 6 Independent Power Channels: Assign specific light modes to individual buttons for precise control.Works with 12V off-road lights, auxiliary lighting, and other off-road accessories.
- Simplified Wiring for Multi-Mode Lights: Easily group multiple light wires into a single channel for streamlined control.Centralize Power Management: Reduce clutter and messy wiring.
- CUSTOMIZABLE SWITCH PANEL: Customize your own RGB backlight, DIY your button with icons, images, or text.
| ASIN | B0D9N9FRNY |
|---|---|
| Color | RGB |
| Model | CHEL-SP2-APP |
| Wattage | 720 watts |
| Terminal | Screw |
| Brand Name | Chelhead |
| Unit Count | 1.0 Count |
| Part Number | CHEL-SP2-APP |
| Switch Type | Push Button |
| Circuit Type | 12-way |
| Contact Type | Normally Open |
| Control Type | Remote and Direct |
| Manufacturer | Samlight |
| Actuator Type | Push Button |
| Material Type | Aluminum |
| Mounting Type | Surface Mount |
| Connector Type | Clamp |
| Control Method | App, Remote, Touch |
| Current Rating | 60 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Android, Push Button, iOS |
| Item Dimensions | 4 x 2.8 x 0.5 inches |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Operating Voltage | 12 Volts (DC) |
| Specification Met | ISO 9001 |
| Included Components | Switch panel set |
| Number of Positions | 12 |
| Warranty Description | 1 Year WARRATY |
| Connectivity Protocol | Bluetooth |
| Upper Temperature Rating | 85 Degrees Celsius |
| International Protection Rating | IP65 |
